Stealth Power Featured in "Idle Reduction: Tips for Today's Work Truck Fleets"

August 16, 2022

Stealth Power Featured in "Idle Reduction: Tips for Today's Work Truck Fleets"

August 16, 2022

*First published by Work Truck Online. By Shelley Mika

As record-high fuel costs threaten to annihilate even the most thoughtfully planned budgets, many fleets look for ways to reduce fuel consumption or cut other costs to compensate. Reducing idling does both.

When an engine idles, fuel economy drops to zero. Most light-duty and medium-duty work truck engines burn between 0.6 and 1.2 gallons of fuel per hour when idling. Reducing idling can significantly reduce wasted fuel — and with fuel prices ringing in at around $6 per gallon, the associated savings can add up quickly.

That’s not all idle reduction efforts do. Reducing idling also minimizes vehicle wear and tear, extends the vehicle’s life, and reduces total cost of ownership (TCO). So putting new idle reduction tactics in place can have the ripple effects fleets need in the current economy.

Check out these tips that can help fleets make the most of the latest technology to whittle down idling more than ever before, even for assets that require idling:

Tip 1: Micro-Hybridize

Work trucks are unique; some must idle to get the job done.

“For work trucks, idling means access to power and, often, comfort. Because workers need significant power at job sites, many work trucks spend about 70% or more of their time idling,” said Jack Johnson, CTO and co-founder of Volta Power Systems. “If we can eliminate idling entirely, we can virtually eliminate up to 70% of fuel costs — sometimes even more — for vehicles spending most of their time doing stationary work.”

Johnson said using an auxiliary system to power tools and equipment can significantly reduce or even eliminate idling.

Micro-hybridization is one such solution. With these systems, a secondary alternator under the hood converts the main engine’s waste energy from driving into usable energy. This energy can then be stored in power packs and used to power tools and equipment when the engine is off.

“These systems can use stored energy to run all necessary auxiliary power loads. Completely separate from the drivetrain, operators can use the power for booms, power tools, cabin A/C, and more without idling the vehicle’s engine,” Johnson explained. “We call this micro hybridization because it takes over the power demand for all traditional idle power loads including A/C, hydraulics, lighting, onsite power, and more.”

Johnson said Volta’s power systems could charge from a standard electrical 120V or 240V outlet without requiring specialized EV charging infrastructure. They can also be integrated into new vehicle purchases or retrofitted into older fleet vehicles as a long-term anti-idling solution.

“Adding secondary power generation to an engine doesn’t have much impact, if any, on fuel economy,” Jackson said. “Most engines don’t operate on their efficiency curve, which is why many work trucks have the same fuel economy regardless of if they’re loaded or unloaded. By adding power generation, though, they can capture energy normally lost in a traditional large displacement vehicle.”

After Volta Power Systems customer Oklahoma Gas & Electric ran a successful micro-hybridization pilot, the utility provider micro-hybridized 14 utility fleet vehicles. Now, each hybrid auxiliary power system provides 12,500-watt hours of energy on a single charge, enough to run hydraulic lifts, power tools, and 120/240V worksite power — often for an entire shift — without idling.

Using conservative runtime estimates of eight hours per day per vehicle, these systems look to yield annual savings of approximately $275,800 in fuel and maintenance costs. It also reduces CO₂ emissions by about 587,000 lbs.

“Simply put, if the engine doesn’t run, it isn’t burning fuel,” Johnson said.

The Xantrex Freedom eGEN is another solution to micro-hybridize a work truck. This system pairs a lithium-ion battery bank, inverter/charger, and a secondary alternator specifically designed to charge lithium-ion batteries in RVs and work trucks.

Tread Connection, a mobile tire service company, swapped its generator for Freedom eGEN because it was noisy, took up space, and ran on fuel. Now, the company uses the Freedom eGEN to power the tools necessary to service customers because it is smaller, quieter, and doesn’t require gas to operate.

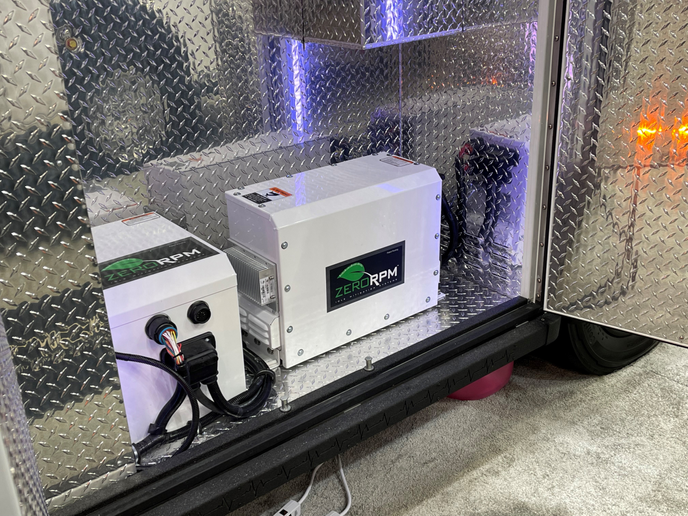

Work truck fleets can take lithium-ion battery power one step further by integrating it with the vehicle’s engine using Zero RPM’s idle mitigation technology.  -  Photo: Xantrex
Work truck fleets can take lithium-ion battery power one step further by integrating it with the vehicle’s engine using Zero RPM’s idle mitigation technology.
Photo: Xantrex

Tip 2: Leverage an Idle Mitigation System with Energy Storage

Idle mitigation systems pair an automatic engine start/stop kit with a Stealth Energy Module (SEM) for energy storage; they are modular and can be configured to fit just about anywhere in a truck.

An example of this automatic idle reduction technology and power is Stealth Power’s Vehicle Power System, which is often installed under a seat. When the vehicle is in park with the engine running for a predetermined time (typically two minutes), the system automatically stops the engine, thereby eliminating unnecessary idling. At the same time, the Stealth Energy Modules power all vehicle equipment and auxiliary loads with the engine off. The system turns on and off to provide continuous power, recharging off the vehicle’s alternator, solar panels, or plug-in shoreline power.

“Fleets that have high idle times can employ several strategies that focus on reduced idling. These strategies range from manual actions by operators to advanced technologies that remove the burden on those operators,” said Stealth Power COO Shannon Sentell, Ph.D. “Automatic idle reduction technologies focus on optimizing the engine run time to support auxiliary energy sources while the engine is off. This is the most successful strategy, as it focuses on operator comfort while automatically controlling the stopping and starting of the engine.”

The Stealth System is “modular” because fleets have the option to add functionality to the core solution. For instance, energy modules can be sized and configured per vehicle needs, fleets can opt for scalable AC power, an auxiliary hydronic heater, an auxiliary DC-powered compressor for cooling, or a solar kit that serves as an additional charging source.

“These advanced energy storage systems are modular, scalable, and can provide all OEM direct current power and integrate with inverters for alternating current power for various power tools and applications,” Sentell said. “Scalable energy storage systems do the work of the engine while the vehicle is stationary, including auxiliary power tools and climate control systems.”

Sentell said fleets with high idle times could save up to 70% of their idling fuel costs by implementing advanced idle reduction technologies. These savings vary by truck type due to several factors, including the engine size, auxiliary power requirements, and geography-based climate control needs. Maintenance savings factor into the equation, too, including “ghost miles,” which represent the hypothetical distance the vehicle would have driven in the same amount of time that the vehicle idled.

“Every minute the engine is off, it provides direct savings in fuel and maintenance costs,” Sentell said. “Heavy-duty work vehicles can burn more than 1.25 gallons per hour when sitting idle and accumulate over 30 ghost miles that increase the maintenance cost and frequency of service.”

One Stealth customer with a fleet of 400 vehicles employed 24 hours per day, every day of the year, saw significant savings by using advanced idle reduction technology. So far, the customer has reduced overall engine time by approximately 30%. This 30% reduction in their fuel and maintenance use leads to a daily savings of $19,430 (at $5.30 per gallon for diesel) during normal operations, allowing them to achieve an ROI in 13 months.

Tip 3: Replace Generators with a Lithium-Ion Battery Pack

Another way trucks can avoid using engine power or a gas-powered generator to operate tools and equipment is to equip them with a lithium-ion battery bank.

“One of the easier ways work truck fleets can reduce idling and generator use is to have a dedicated lithium-ion battery pack,” said Mitul Chandrani, Vice President, Marketing, Mission Critical Electronics. “The advancement of the technology allows fleets to have a power-dense battery box. A traditional truck battery is twice the weight of a lithium-ion battery, and only 50% of its capacity is used for power. But the Freedom eGEN lithium-ion battery offers twice the capacity in the same physical size of a traditional battery, puts out 100% power, and lasts 6-8 times longer.”

A lithium power battery pack in conjunction with a power inverter can power everything from laptops, phone chargers, equipment, and onsite tools instead of powering these things from an idling truck.

“Many specialty vehicle manufacturers like Draxxon and Matthew Specialty vehicles install different versions of the Freedom eGEN system in their builds depending on application and power needs,” Chandrani said.

“Lithium-ion batteries are safe, have come down in price, and pack a lot of power in a relatively small package,”

Tip 4: Integrate Lithium Ion Charging With the Vehicle’s Engine

Work truck fleets can take lithium-ion battery power one step further by integrating it with the vehicle’s engine using Zero RPM’s idle mitigation technology.

When work trucks are equipped with Zero RPM, putting a truck in park will automatically shut off the engine, preventing idling. The engine can then be turned back on to charge the lithium-ion battery power bank at the system’s heart. Even though the engine is off, electronics, AC, and other electrical will continue to operate as if the engine is one.

“Zero RPM integrates with the vehicle so that when batteries are extremely low, the engine will turn on to charge the battery — it’s an automatic integration,” Chandrani said. “That means the work truck can be turned off completely, whether someone is working in or out of work truck, they have power when they need it. It’s zero emissions power anytime, anywhere.”

The City of Memphis Fire Department opted to use ZeroRPM on its 12-unit ambulance fleet to reduce fuel consumption and emissions. This has reduced idle time by 68-69% and saved the fleet $6,000-$7,000 per truck in annual fuel costs. The fleet also reduced engine maintenance by 30% due to reduced engine hours, which totaled another $1,500-$2,000 in savings.

Jonathan Haley, Lieutenant, City of Memphis FD, said fleets can offset the initial costs through grant funding but should expect to see a positive ROI either way. With the current fuel prices, ROI is currently two years on ZeroRPM. The fleet is now looking to install the system on its fire trucks.

Using ZeroRPM’s telemetrics solution, fleets can see how much idling is reduced, how many engine hours and gallons of gas are saved, CO2 emission reduction on one dashboard. These data can be viewed for a single truck or across the fleet.

“Idle mitigation systems have become very attractive to fleets now that fuel has reached record prices,” Chandrani said. “When investing dollars, it’s very powerful to see the payback.”

Work trucxks are unique. Sometimes, they have to idle to get the job done.  -  Photo: Xantrex
Work trucxks are unique. Sometimes, they have to idle to get the job done.Photo: Xantrex

Tip 5: Add Solar Power Into the Mix

Although solar panels can’t directly power tools and equipment, they can be used to charge a battery.

“It’s free energy from the sun,” Chandrani said. “Even if it adds 5 or 10% to overall available capacity for the power, it’s still extra power.”

Solar panels provide continuous trickle charging to batteries when sun is available, which helps extend battery life. The life of a battery is measured in cycles, and a traditional lead-acid or AGM battery typically lasts 300-400 cycles. But a cycle is only complete when it goes from a 100% state of charge to 0%. So when additional power like solar energy keeps it charged, it prevents the cycle from being completed, extending battery life.

“Solar panel technology has advanced so much, and the price of panels has come down a lot in recent years,” Chandrani said “Xantrex has peel-and-stick panels, so fleets don’t have to worry about drilling holes. You just peel the backing off and apply it on the roof. The surface doesn’t even have to be flat. Adding solar to a Freedom eGEN system presents a viable alternative for work truck fleets.”

Tip 6: Use an Inverter With a Built-In Battery Charger

An inverter can be a practical alternative to replace a generator. Inverters serve three key purposes. First, they can convert DC power from the battery into AC power. This energy source replaces a generator to run things like power tools, laptops, or even a microwave or coffee maker in a sleeper cab.

When AC power is available, inverters can also serve as a charging source for batteries. With a built-in transfer switch, Xantrax inverters allow the charger to be plugged into shore power but also let electricity flow through to power laptops, power tools, and the like. When AC power is disconnected, the unit inverts DC battery power into AC electricity.

“Xantrex inverters as part of the Freedom eGEN system can help eliminate the generator,” Chandrani said. “A key thing to look for in an inverter is surge capacity and how long it may surge. Xantrex manufacturers specific inverters that surge to twice its rated capacity for 5 full seconds. This power surge is required to start things like an air conditioner. Anything with a motor needs this initial power surge, otherwise, it won’t start.”

Inverters also have an edge over generators in that they put out energy in a more efficient manner. Where a 10,000-watt generator will always produce that same amount of energy whether you plug in a heavy or small load, an inverter will only produce the amount of power needed to operate tools and equipment.

Tip 7: Use Idling Data to Coach Drivers

While fleets can use hardware to reduce idling, oftentimes, drivers have the most control of how much a truck idles. That’s where fleet management software comes in.

To combat these behaviors, fleet managers can encourage idle reduction best practices, like requiring their crews to turn off their vehicles when they arrive onsite instead of waiting until the end of the workday or even during bathroom breaks.

“Managing employee behavior and driver and operator compliance can be a challenge for fleet managers,” said Nick Grandy, Vocational GM – Industrial Services, Zonar. “It is crucial that the entire team is on the same page and striving for the same goal, including management.”

Using data from a fleet management system (FMS) can catalyze drivers to rally around idling reduction efforts. FMS data show who is idling, where they are idling, and for how long. Fleet managers can also set up idle alerts based on time, which gives them real-time notifications and insights, whether job-based, site-based, or time-based. For instance, if there is a place where drivers are known to socialize while idling, a fleet manager can be notified of it and address it.

“Within these management systems, fleets should be able to track fuel efficiency and use, capturing and comparing actual driver habits to a simulated driver that performs at maximum efficiency for a configured trip,” Grandy explained. “Through this, fleet managers can input thresholds for idle time based on what the operation team considers excessive, track and monitor each vehicle and driver’s fuel use, and then use that data to coach drivers on how to operate more efficiently.”

Western Utility, a construction leader based out of Illinois, began looking closer at its fleet’s idle times about two years ago. Using Zonar’s idle reports and alerts, the company could coach drivers and decrease excessive idle times by 40%. As a result, on-road diesel fuel usage saw a 35% decrease over the entire fleet, saving about $2,000 per month in operating costs.

Tip 8: Make Idling Reduction a Game for Drivers

If coaching drivers doesn’t change their behavior, driver scorecards and gamification can be an effective way to get them on board.

“Gamification includes prioritizing idle reduction performance as a safety initiative, similar to what fleets do with hard-braking and harsh acceleration,” Grandy explained. “Technology can help support gamification programs by automatically capturing the driver’s performance from the vehicle’s telematics technology as it relates to idle time and hard accelerations. That data is then saved to that driver’s scorecard for the fleet manager and the driver to track on an ongoing basis.”

Fleet managers can use scorecard data to offer rewards like gift cards, time off, and bonuses as incentives to promote idle reduction.

Any Idle Reduction Equals Direct Savings

No matter whether your idling reduction efforts are big or small, making any change will reduce fuel spend and vehicle emissions.

“The cost of fuel, both gasoline and diesel, has doubled over the past 18 months, so this topic is at the top of every fleet manager’s priority list,” Sentell said. “Increased prices place an incredible amount of stress on their operations and maintenance budgets, so any reduction in idling correlates to direct savings.”

What are you doing to reduce idling in you fleet? We have more tips for fleets looking to save on fuel costs.
